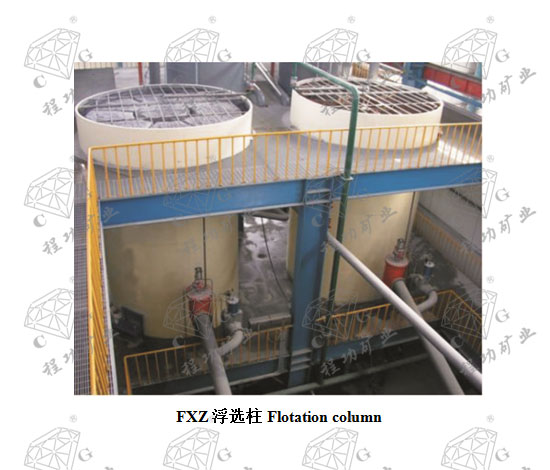

FXZ浮选柱 Flotation column
工作原理:旋流微泡浮选柱采用射流原理,将旋流器与浮选柱有效结合。通过渣浆泵产生高压矿浆经气泡发生器(矿浆预备器)产生微泡,由旋流器后脱粗后<0.5mm矿物流入浮选柱进行选别。机器适用<0.5mm以下的煤泥、赤铁矿、有色矿、非金属矿、含油污水处理、废纸脱墨等细粒度、灰分高、泥质多的物料分选。具有节能高效,富集比大,泡沫产品品位高,工艺流程简化。节省设备投资25%、省电70%、节能药剂10%。占地少,结构简单,无传动部件,操作方便,易于自动化控制,维修方便等特点。
Working principle: Cyclo-microfroth flotation column effectively
combines cyclone and flotation column based on jet principle. The high-pressure
slurry produced through slurry pump produces microbubbles via bubble generator
(slurry preparer). After the minerals are coarsely grinded by cyclone till the
thickness is <0.5mm,
they flow to the flotation column for sorting. Such machine applies to the
sorting of materials with fine grains, high ash content and much mud such as
coal slime smaller than 0.5mm,
hematite, non-ferrous metals, non-metalliferous minerals, oily sewage and waste
paper. It has characteristics such as energy conservation and high efficiency,
large concentration ratio, high grade of froth products, as well as simple
process flow. Such equipment can save 25% of equipment investment, 70% of
electricity, and 10% of reagent. It occupies small land and is simply
structure, free of transmission parts, easy for operation, automatic control
and maintenance.
型号规格
Madel |
直径
Diameter |
矿浆量
Pulp Throughput |
干量
Dry slurry |
功率
Power |
质量
Weight |
适用范围
Major
pourpose |
|
m |
m3/h |
t/h |
kw |
t |
10000t/a |
FXZ1000 |
1 |
50-60 |
4-5 |
13 |
|
10-15万t/年(煤) |
FXZ1500 |
1.5 |
70-110 |
5-8 |
17 |
|
15-20万t/年(煤) |
FXZ2000 |
2 |
110-180 |
8-12 |
30 |
|
20-30万t/年(煤) |
FXZ3000 |
3 |
250-500 |
15-24 |
55 |
|
30-60万t/年(煤) |
| |
